Read more about the

Unique Solenoid Valves

for gasses and liquids

Learn what the Mac Bullet Valves can do for you

MAC Bullet Valves Make The Impossible Possible!

Different diameter sizes

The MAC Bullet Valves are available from 7 mm up to 29 mm in diameter. This way flows can be achieved, which are unprecedented in direct operated valves.

For gasses and liquids

The MAC Bullet Valve can be used for both gasses and liquids. Because of the big selection of metals, plastics and rubber component, there will be a valve configurable for every application.

Unmatched performance

MAC Valves is well known for their precise and repeatable response times. It will bring you predictable performance, both in pulsing air or dosing liquids. Each Bullet Valve can be configured to have the same performance from valve to valve.

From project to product

MAC Valves works from project to product, so each valve can be exactly configured to your needs. If a type is not yet available, MAC Valves will invest in designing your custom solution and herewith the product range will be extended. Each valve design came from a customer request, will you dare us to design a new one?

Direct solenoid Fast and reliable response times

Special D-seals or membrames for either gasses or liquids

Strong
spring
Fast de-energize
response times

Different port options
2-way, 3-way and 4-way

How does it work

Look at the internals



Our MAC Bullet Valve is special. The patented design creates a world of opportunities. We fullfilled a need of a customer and it created a valve, highly configurable and highly durable. All parts have been designed in order to create a valve that will help improve your processes.

Valve
Parts

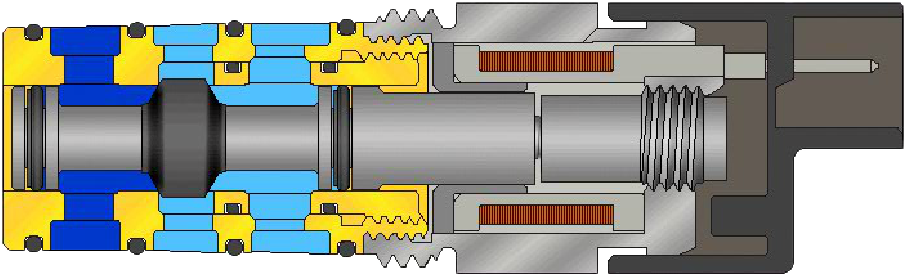

MAC BV Parts

Coil

Fixed pole piece

Poppet

D-seal

D-seal

Return spring

Armature

Adjustable retainers

Connector or flying leads

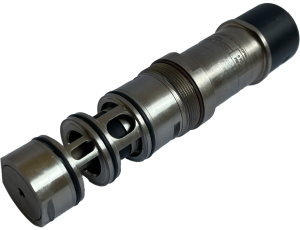

MAC BV 3D
